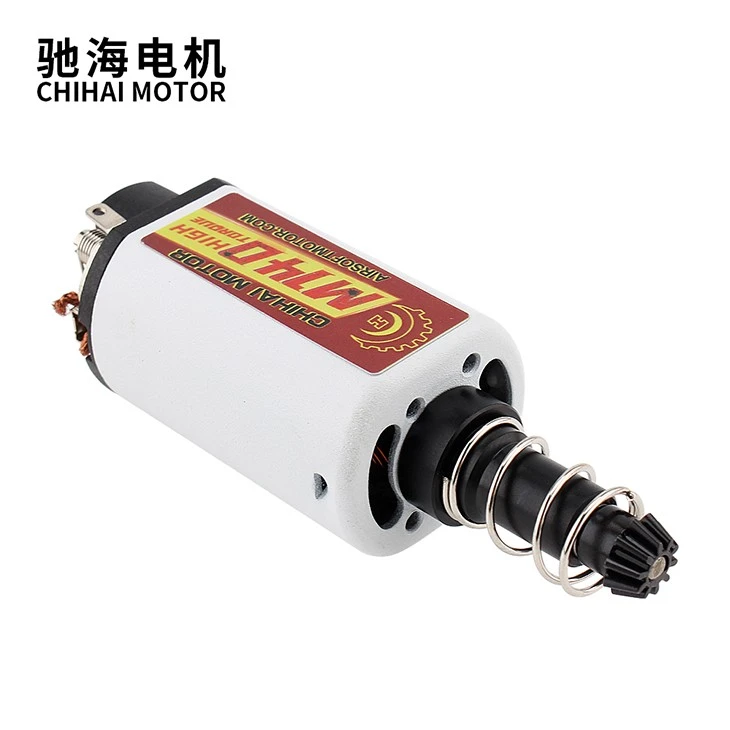

CHF-480WA HIGH SPEED HIGH Torque Motor

	CHF-480SA/VA/WA HIGH SPEED HIGH Torque Motor
	Shell paint/200 degree Thermostable back cover

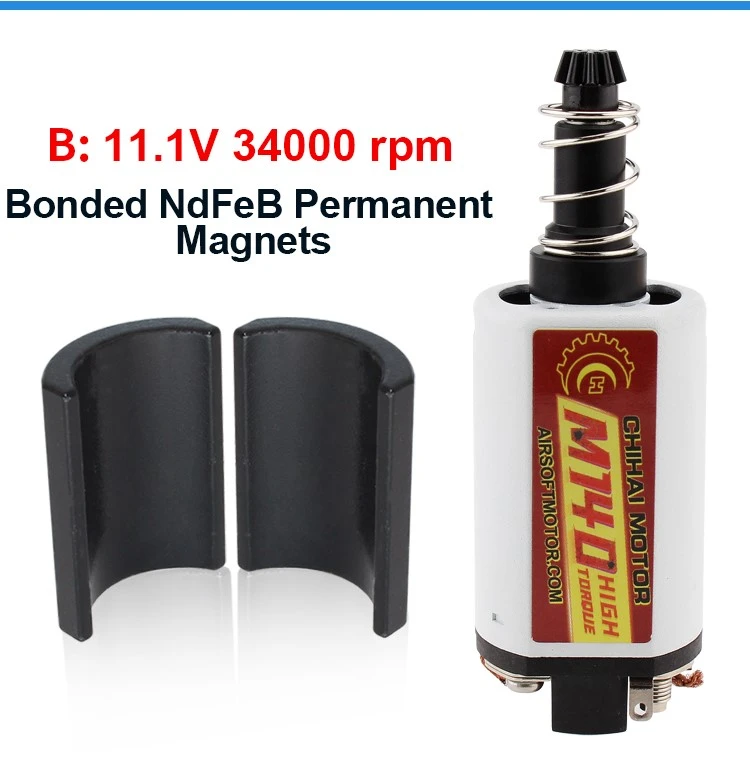

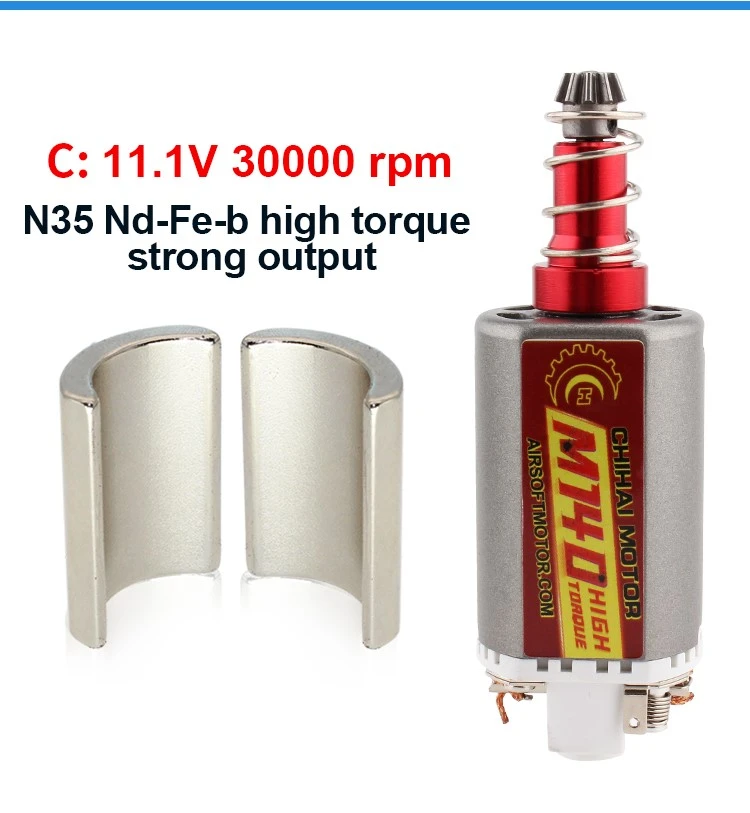

	Wet-pressed ferrite magnet / Bonded NdFeB Permanent Magnets / N35 Nd-Fe-b
DC11.1V SPEED	A: 30000 rpm, B:34000 rpm, C: 30000 rpm, D: 46000 rpm
	About 150g
	Ver.2 gearbox Airsoft gun JIN MING M4A1-J9 ACR-J10 Wavebox upgrade 480 motor WARINTEREST JIQU HK416D / KUBLAI BD556 JINGJI SLR / NEW WELL M4



High-speed high-torque motor is a very advanced motor product, which can provide strong power output during high-speed operation, and is widely used in the operation of various industrial equipment and machinery. Small size, light weight, high efficiency, smooth operation and other advantages.



The application range of high-speed high-torque motor is very wide, including industrial production, transportation, municipal construction and other fields

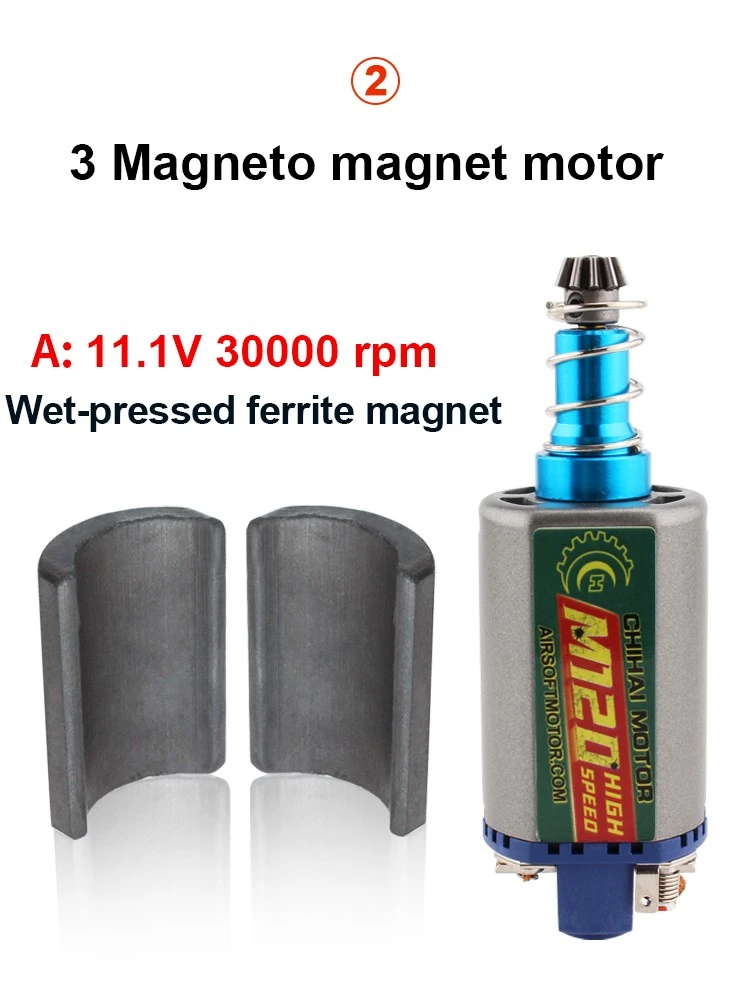

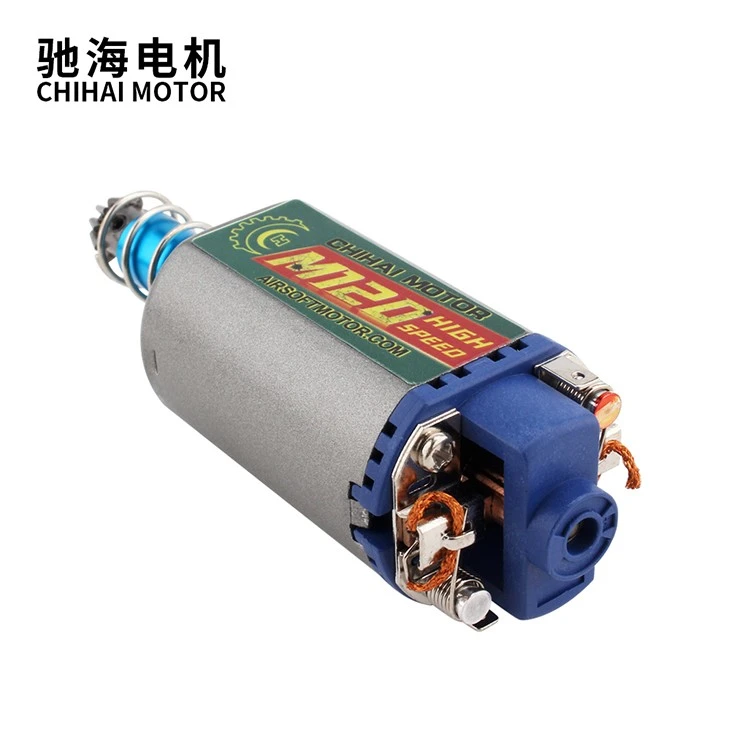

Model:CHF-480SA M120

Voltage: DC 11.1V

30000 rpm	1.40 A	141.82 mN.m	86.193 A



26609 rpm	10.99 A	16.03 mN.m	44.7 W	36.657%



15000 rpm	43.797 A	70.909 mN.m	111.45 W	22.92%



1-Ferrite Wet Pressure Magnets

2- Nylon low thermal conductivity rear cover

3-Ball bearing construction

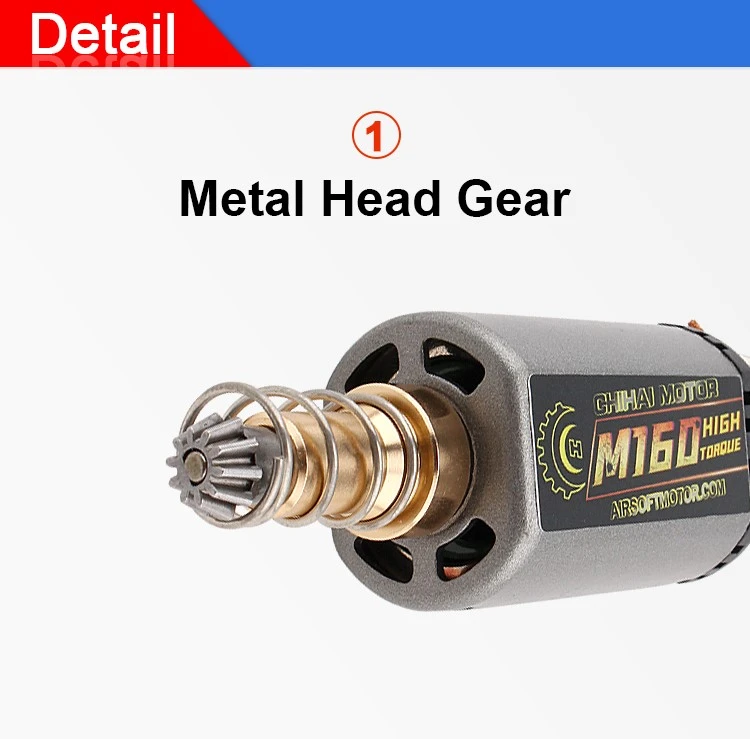

4-extra strong powder metallurgy pinion gear

5-Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing

8-Suggest mechanical switch control reject fire control







Model: CHF-480VA-7516G-87.5D High Torque Motor

Voltage: DC 11.1V

34000 rpm	3.30 A	333.3333 mN.m	109.3 A



28967 rpm	18.99 A	49.35 mN.m	149.8 W	71.04839%



17000 rpm	56.3 A	166.6667mN.m	296.8897 W	47.5 %



1-N10 bonded Neodymium Magnet

2- Nylon low thermal conductivity rear cover

3-Ball bearing construction

4-MIM steel pinion gear

5-Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing

8-Support fire control chip control

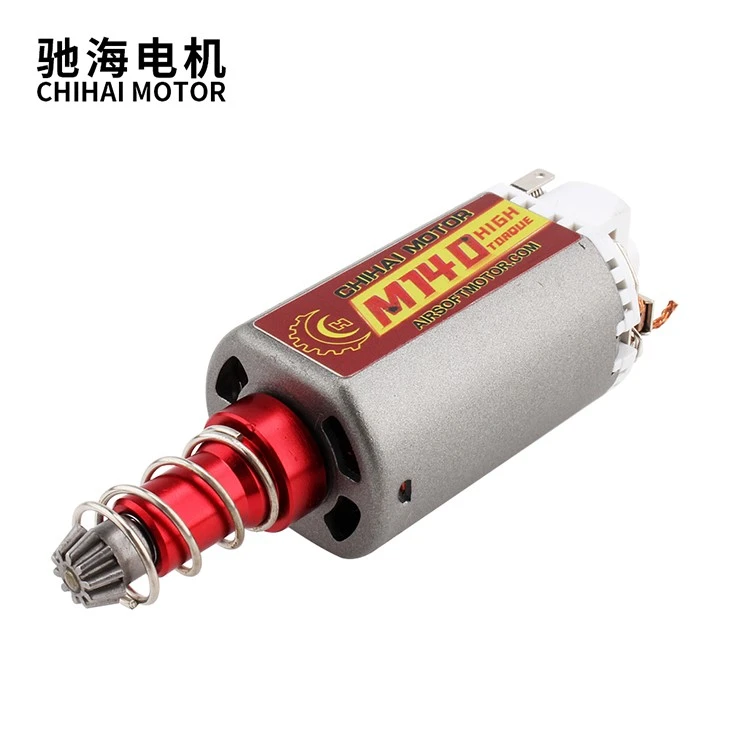

Model:CHF-480WA M140 HIGH Torque Motor

Voltage: DC 11.1V

30000 rpm	2.8 A	5134.3 g.cm	167.371 A



26700.0 rpm	20.903 A	564.8 g.cm	154.660 W	66.66 %



15000 rpm	85.086 A	2567.1 g.cm	394.945 W	41.82 %



1-N10 bonded Neodymium Magnet

2- Nylon low thermal conductivity rear cover

3-Ball bearing construction

4-extra strong powder metallurgy pinion gear

5-Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing

8-Support fire control chip control

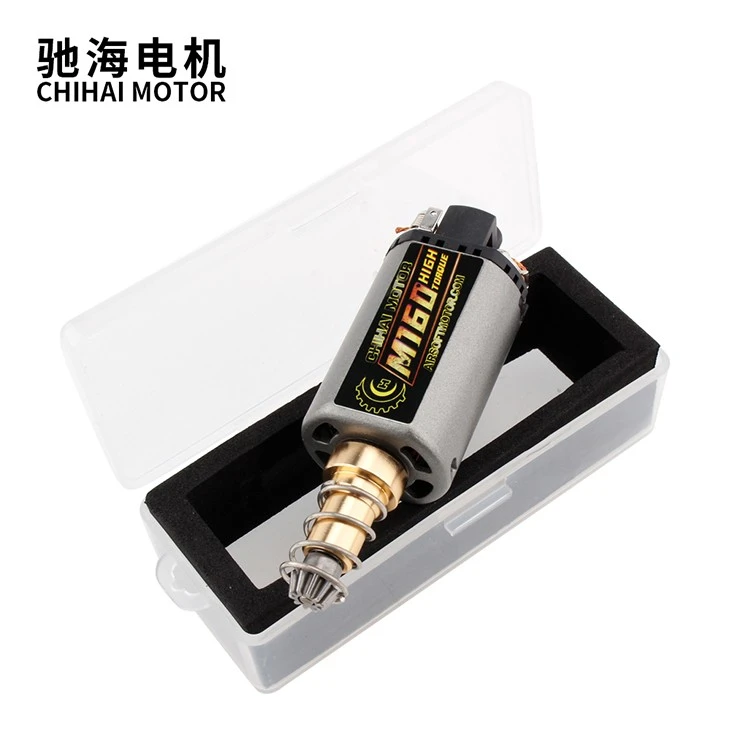

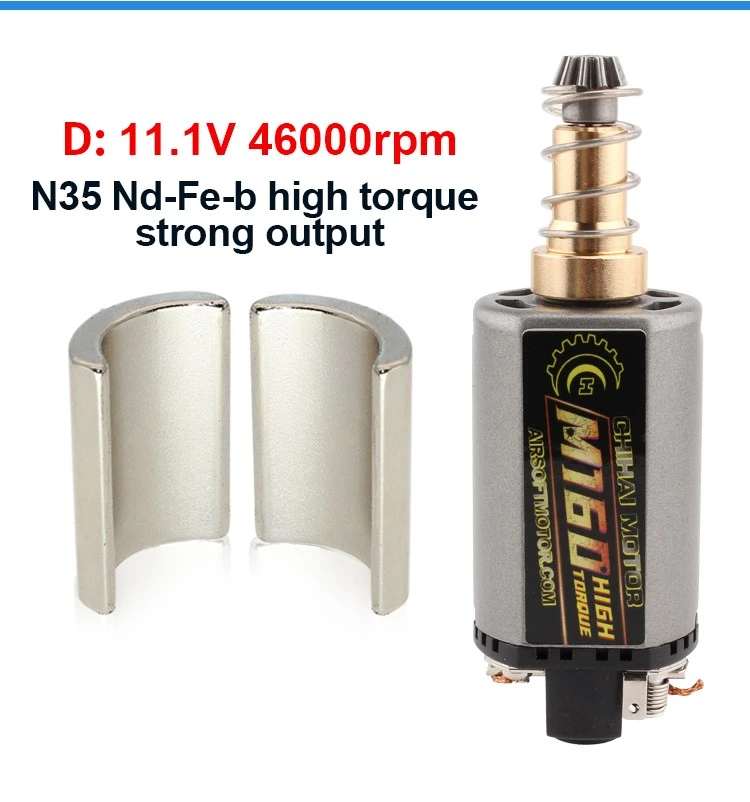

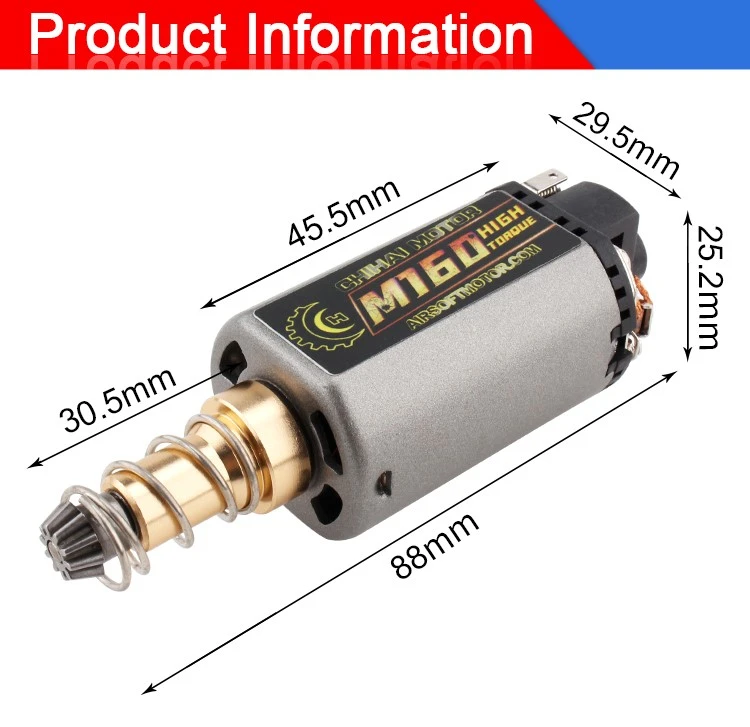

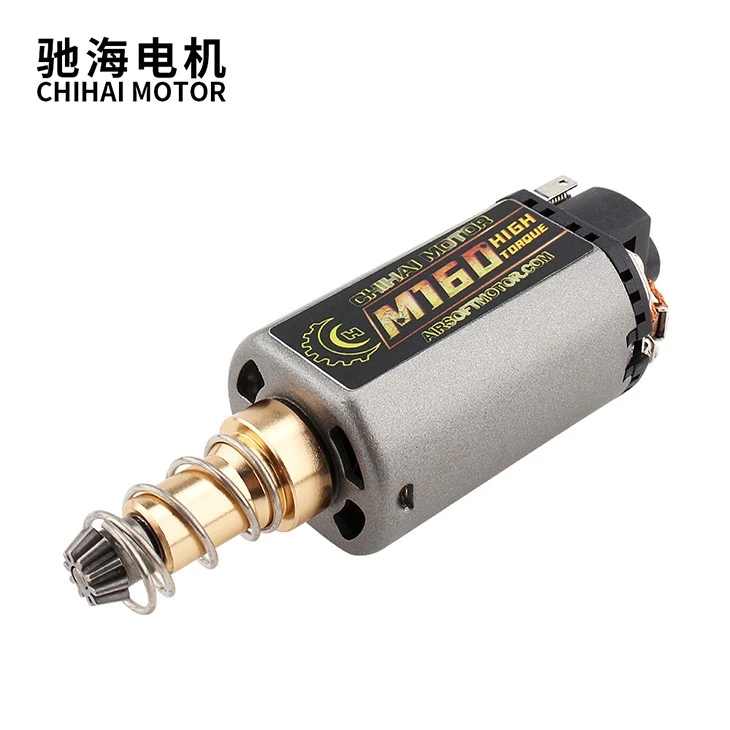

Model:CHF-480WA M160 HIGH Torque Motor

Voltage: DC 11.1V

Voltage: DC 11.1V

46000 rpm	6 A	4140.0 g.cm	228.333 A



39560.0 rpm	37.127 A	579.6 g.cm	235.169 W	57.07 %



23000 rpm	117.167 A	2070.0 g.cm	488.308 W	37.55 %



1-N10 bonded Neodymium Magnet

2- Nylon low thermal conductivity rear cover

3-Ball bearing construction

4-extra strong powder metallurgy pinion gear

5-Closed paint shell

6-High performance wear-resistant carbon brush

7-Armature Dynamic Balancing

8-Support fire control chip control







3-20 days after confirming order,detail delivery date should be decided according to
